TEEMI Barcode Scanners

TEEMI TMSL-54CR Bluetooth Barcode Scanner with Charging Dock Data Receiver, Neck Wrist Lanyard Portable Wireless 2D QR Bar Code Reader for Tablet iPhone iPad Android iOS (White)

TEEMI TMSL-54CR Bluetooth Barcode Scanner with Charging Dock Data Receiver, Neck Wrist Lanyard Portable Wireless 2D QR Bar Code Reader for Tablet iPhone iPad Android iOS (White)

$59.99 USD
$59.99 USD
Save $-59.99 Sold out
Color
  • Strong decoding Ability – Rapid 2D and 1D omni-directional barcode scanning with highly visible and safe LED aimer, suited for environments prohibiting lasers. Scans on paper or screens. With data editing capabilities like adding or removing characters and control characters.
  • 2-in-One USB Dock - It works as a data receiver and charging base, no need to install additional USB adapter; data transfer range with usb cradle can up to 820ft maximum.
  • Bluetooth 5.0 Wireless Technology - the scanner can be connected with your laptop, PC, mobile phone, tablet, iphone, ipad, directly via bluetooth. direction bluetooth transfer range can up to 398ft maximum
  • User Indicators and Feedback – Intuitive LEDs for Bluetooth connection, battery level and scanning status. Audible tones and hand pulsation for each scan
  • Wearable: With one adjustable Wrist Strap and one lanyard, small pocket size and lightweight, you can carry the scanner around while in your work.
View full details
  • Description
  • User Manual
  • Q&A

Product Description

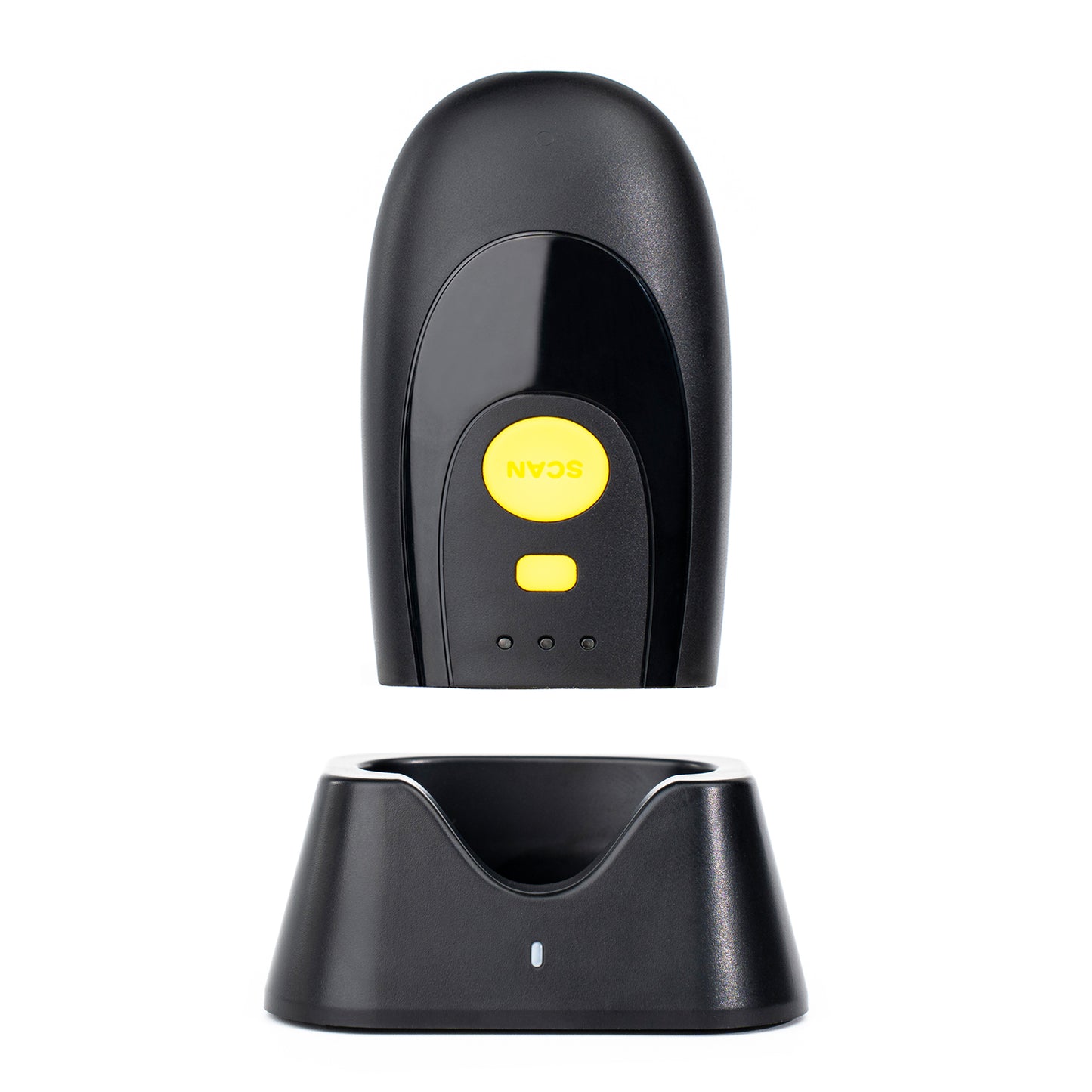

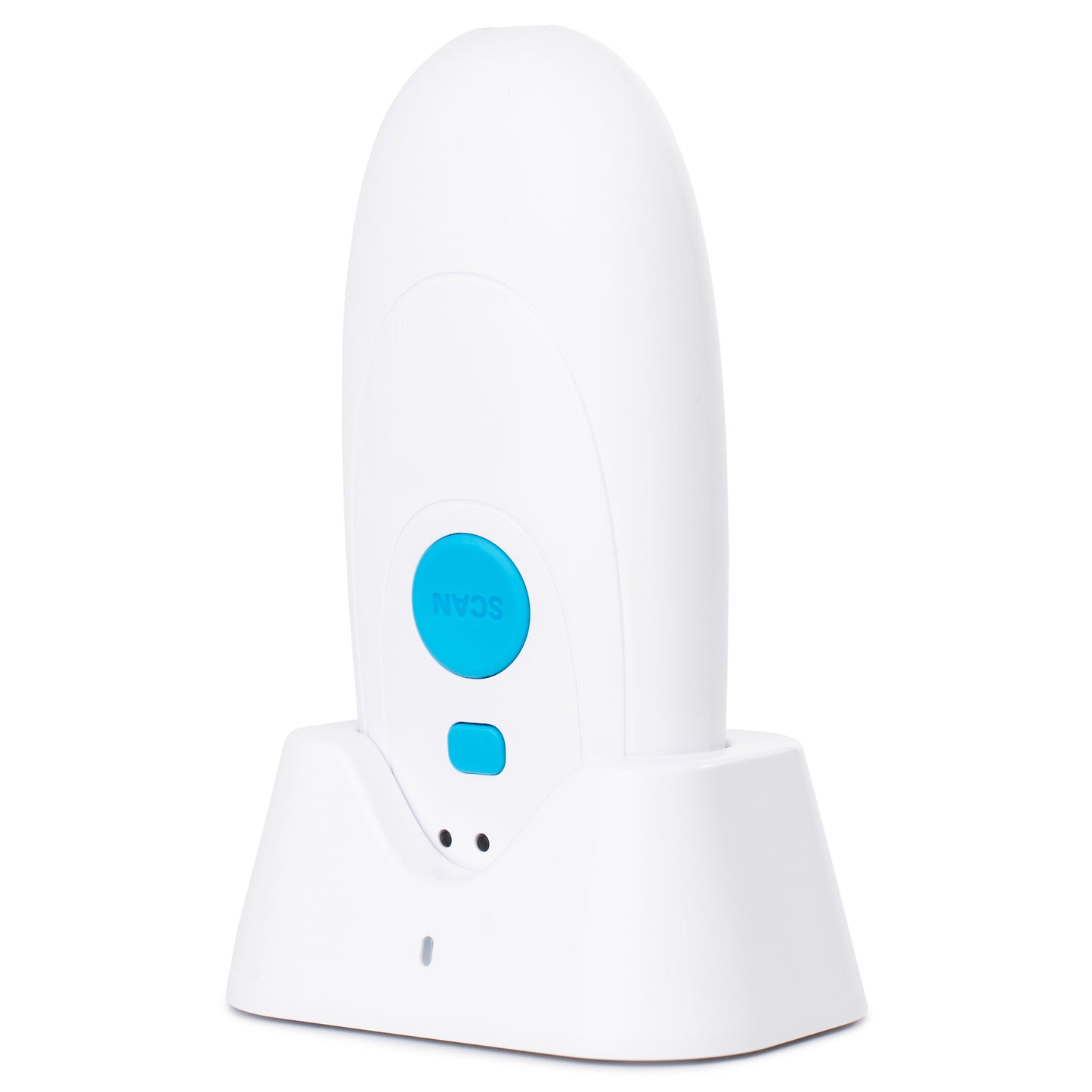

2d bluetooth barcode scanner with USB cradle mini scanner

TMSL-54CR is a bundle product which includes a 2d universal bluetooth scanner and a multi-function usb cradle. The combination allows the scanner to work with a lot of devices even for those old PC without bluetooth feature. The latest bluetooth 5.0 feature and built-in 2500mAh battery enables the scanner less consumption, less charge and long lasting.

It can upload the data into notepad on windows, andriod, Mac OS and ios devices. However it might not be 100% compatible with square or vend which are required to use their own scanner.

wireless charge 2d bluetooth barcode scanner with usb cradle

Package Contents: One Bluetooth scanner, One usb cradle, One Wrist Strap, One Lanyard, One Manual, One USB Cable

longer range bluetooth barcode scanner

Easy to use, User Friendly

Bluetooth barcode scanner works for andriod windows Mac OS ios

wireless portable hand scanner with USB cradle work as data receiver charging station base

barcode scanner press the button to pop out and hide the onscreen keyboard

Bluetooth 5.0 - Longer Range

A longer Bluetooth range compared to competitive devices enables greater operational flexibility for line busting or peak season satellite POS stations.

It can upload data to the notepad of Apple iOS, Android, Window PC or tablets.

How to pair the scanner with your bluetooth device:



  • Unplug the usb cradle into your PC
  • Scan "bluetooth keyboard" on the manual
  • Search the scanner in the bluetooth list and click to connect



Versatile USB Cradle, Plug and Play

The scanner is paired to the USB cradle by factory default setting.

How to pair the scanner with the cradle:



  • Plug the USB Cradle into the USB port of your PC or POS
  • Scan the address code on the cradle
  • Open a blank notepad or excel sheet, place the cursor in
  • Start to scan



Allows onscreen keyboard entry

You can press the small yellow key to pop out or hide the onscreen keyboard of your smart device.

large capacity battery less charge low consumption

pager button to find the barcode scanner easily

data formatting

Less Charge and Long Lasting

With built-in 2600mAh Capacity Rechargable Battery, it can work 24 hours continuouslyafter full charge. (Test the battery life with a machine, scanning rate one scan per second).

When the battery is low, you will hear three high beeps from the scanner.

Pager Button

This scanner is portable and pocket size, you can carry it around at work.

Pressing the pager button on the cradle, you can easily find the scanner.

Advanced Data Formatting



  • A prefix or suffix can be added or cleared from one symbology or all symbologies
  • You can string together several entries for several symbologies at one time
  • You can add, remove or replace characters or digits in different positions



bluetooth profiles HID SPP GATT

1d 2d qr pdf417 barcode scanner

USB-C fast charging port

You can select the bluetooth profile mode accroding to your software requirement.



  • Bluetooth SPP(serial port profile):



The scanner can upload the data to your serial software under this mode.



  • Bluetooth GATT(Generic Attribute Profile)



The scanner can upload the data to your serial software under this mode. GATT Service UUID needs to be filled while in connection.



  • Bluetooth HID



This is the default setting.

If the scanner is connected to your device via the usb cradle, you can upload the data to your serial software via usb virutal com port.

Our 2D barcode imager scanner features reading 2D and screen barcodes well.

Some barcode type may be disabled by factory default setting, please kindly enable it before scan. If your barcode is 1D long linear type over 4inches, you can consider our TMCT-10.

Our TMSL-54CR supports following barcode types:

1D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin etc.

With USB-C fast charging port, the scanner can be fully charged in 3-4 hours wired, 5-6 hours wiress charging.

You can charge the scanner any time you want after use, no need to find the charging cable everywhere.
Dimensions: 103mm*50mm*29mm(4.05*1.97*1.14inch)
Weight: 162g(0.36lb)
Image(Pixels) 640 pixels(H) * 480pixels(V)
Light Source: Aiming: 617 nm LED; illumination: 3500K white LED
Field of View: 40° (H) * 31° (V)
Roll/Pitch/Yaw: 360°, ±65°, ±60°
Print Contrast: 25% minimum reflective difference
Screen Intensity: 30% brightness or above on the digital screen
Code 39 (5 mil): 1.18 inch to 3.93 inch (Peformance may be impacted by barcode quality and environmental conditions)
100% UPC-A (13 mil): 1.57 inch to 11.81 inch (Peformance may be impacted by barcode quality and environmental conditions)
1D minimal resolution 3mil (Peformance may be impacted by barcode quality and environmental conditions)

1.If your TEEMI 2D scanner has difficulties to scan QR code with website address, how to do?

please kindly scan the configuration code below to activate this feature.

2.How to Activate OCR function of TEEMI 2D Scanners?

Please kindly scan the configuration code below to activate the OCR function. This code only works for TEEMI 2D Scanners.




3. How to activate the IMB code for TEEMI 2D Scanners?

Please kindly scan the programming barcode below to activate the IMB code.

4. How to program the scanner auto enter after each scan?

Please scan this code to set up.

5. How to turn off the sound of the scanner?

Please scan the codes below to set up.

6. How to check the percentage of battery left in your scanner?

Please scan this code to check.
