TEEMI Barcode Scanners

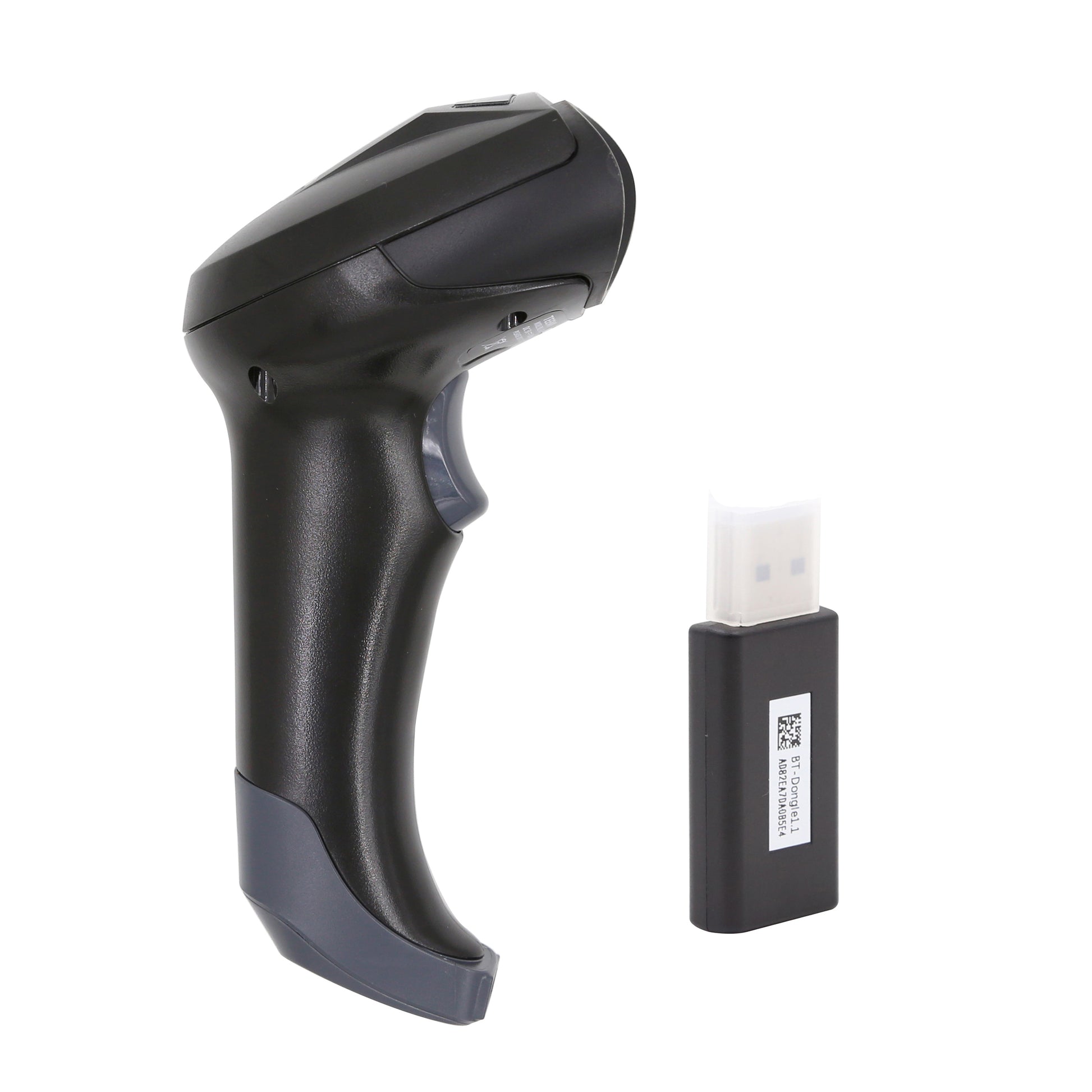

TEEMI TMSL-56 QR Bluetooth Barcode Scanner, 1D 2D Wireless USB Imager for iPhone ipad Andriod Smartphone Tablet Mac Windows PC, Support PDF417 Driver License, Stable Bluetooth 5.0 Technology, with USB Dongle, NO USB CRADLE

TEEMI TMSL-56 QR Bluetooth Barcode Scanner, 1D 2D Wireless USB Imager for iPhone ipad Andriod Smartphone Tablet Mac Windows PC, Support PDF417 Driver License, Stable Bluetooth 5.0 Technology, with USB Dongle, NO USB CRADLE

$75.99 USD
$75.99 USD
Save $-75.99 Sold out
  • Fast Scanning Ability: 100 frames per second, Improved scanning of curved, wide, poorly printed and damaged barcodes, High speed, omnidirectional reading of 1D, 2D, Postal and reverse printed bar codes, support full 2D barcodes like PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin
  • Long Transfer Range: Bluetooth 5.0 technology, direction bluetooth transfer range can up to 398ft maximum, transfer range with usb cradle or receiver can up to 820ft maximum. NO USB CRADLE IN THIS PACKAGE. If you need the scanner with the cradle kit, please search B07KJTD3CF on amazon.
  • Flexible Installation and Online Upgrade: You can mount the usb cradle on the wall or put it on the table. The cradle works as a data receiver, charge station and stand. The bottom page button on the cradle will help you to upgrade the internal software and find the paired connected scanner if you forget where you put it.
  • Three Scanning Modes: Trigger scanning mode(press the trigger to scan), continuous scanning mode(LED will stay one all the time to scan) and auto-sensing scanning mode(the LED will be activated when the barcode is close to the scanning window.)
  • Inventory Mode with Large Capacity: scan your barcodes around and upload them in batch. With 32M internal memory, the scanner can save up to 20,000 UPC barcodes one time.
View full details
  • Description
  • User Manual
  • Q&A

Product Description

easy to use bluetooth barcode scanner connect to your ios android chrome windows linux

2D Bluetooth Barcode Scanner - Moving your barcodes beyond paper

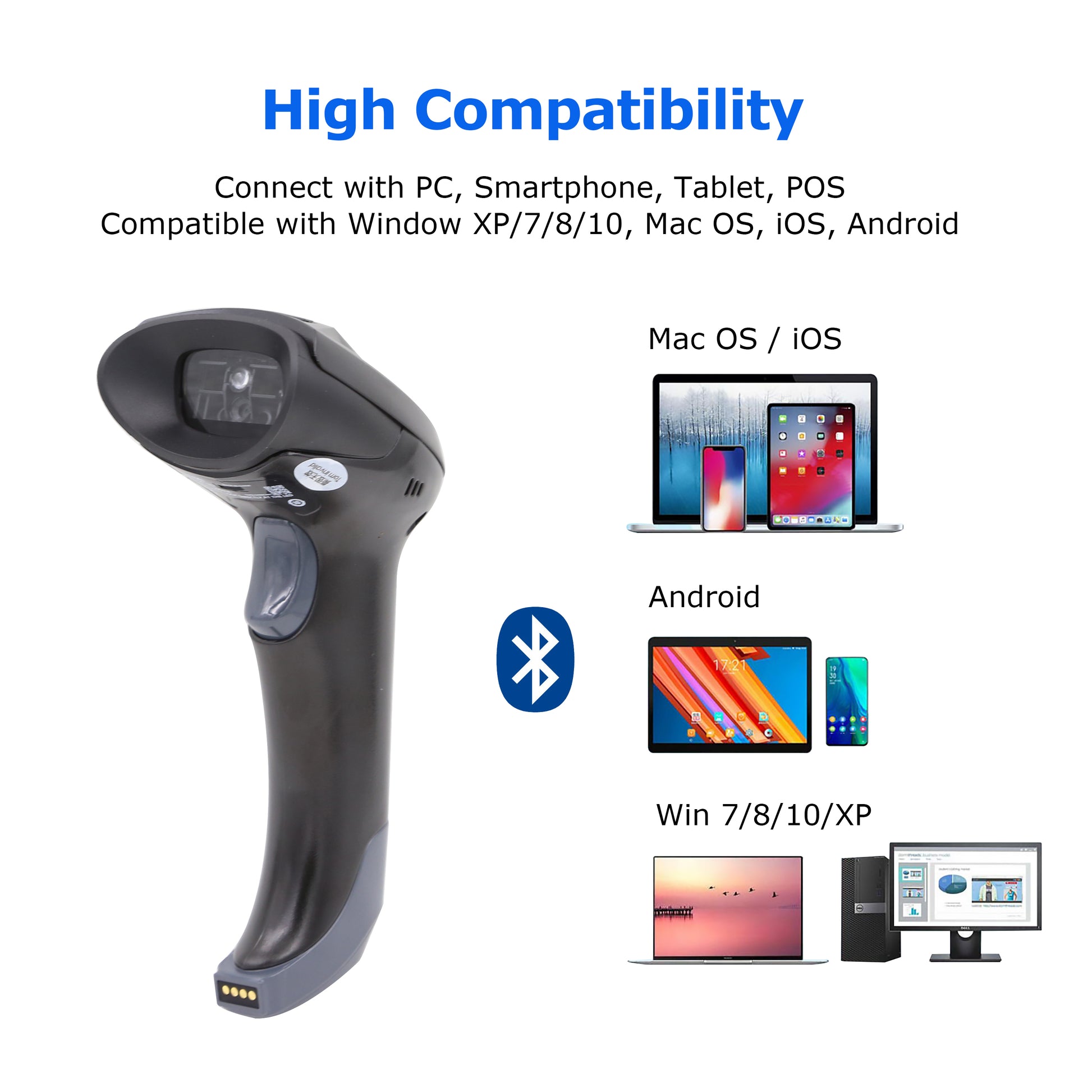

This TMSL-56 scanner is using the latest bluetooth technology, and it is the updated version for TMSL-55. It works with Apple iOS, Android, Window PC and tablets.

NOTE:

1. This scanner is not 100% compatible with square, vend, shopkeep software on iOS devices.

2. If you want this scanner to read DPM barcodes, please kindly confirm with us before placing the order. Codes, symbols, and text applied directly to a part’s surface (rather than affixed by a label or packaging) are known as Direct Part Marks (DPM). DPM are used widely in industrial part tracking from electronics manufacturing to automotive assembly.

3. This 2D scanner is not good at decoding 1D long barcode around over 10cm. It reads UPS, UPS tracking bills.

Fast Precise Scan and Long Transfer Range

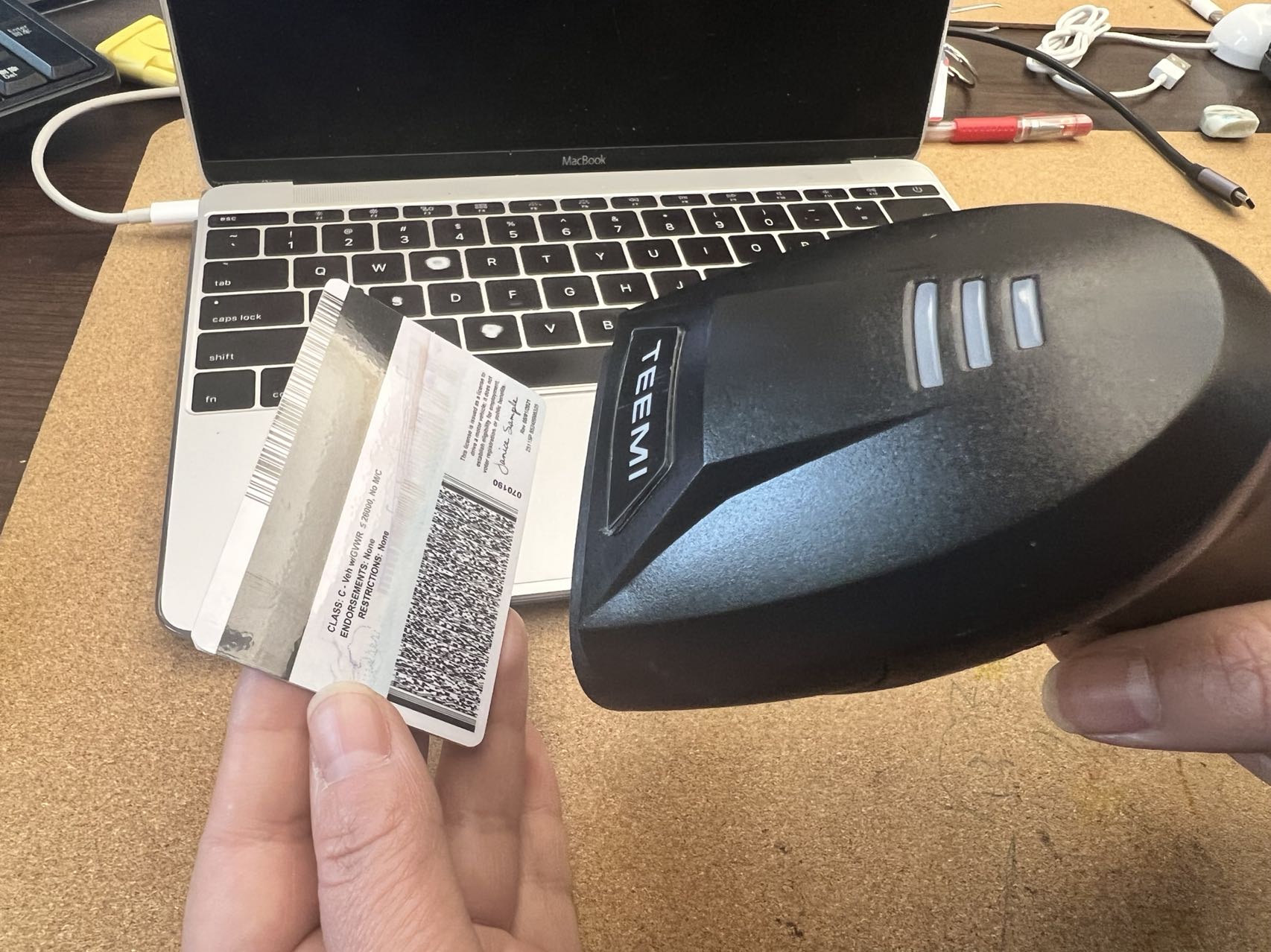

driver's license barcode scanning ID scan PDF417 datamatrix read

usb receiver and usb cradle included GATT barcode scanner

barcode scanner beeper vibration led light

Symbology Decode Capability

This scanner can output the driver license data into one single line by factory default setting. If your software requires the data to be input into several columns, please kindly confirm with the seller first.

1D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39,

Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin etc.

This 2D scanner is not good at decoding 1D long barcode around over 10cm. However It reads UPS, UPS tracking bills.

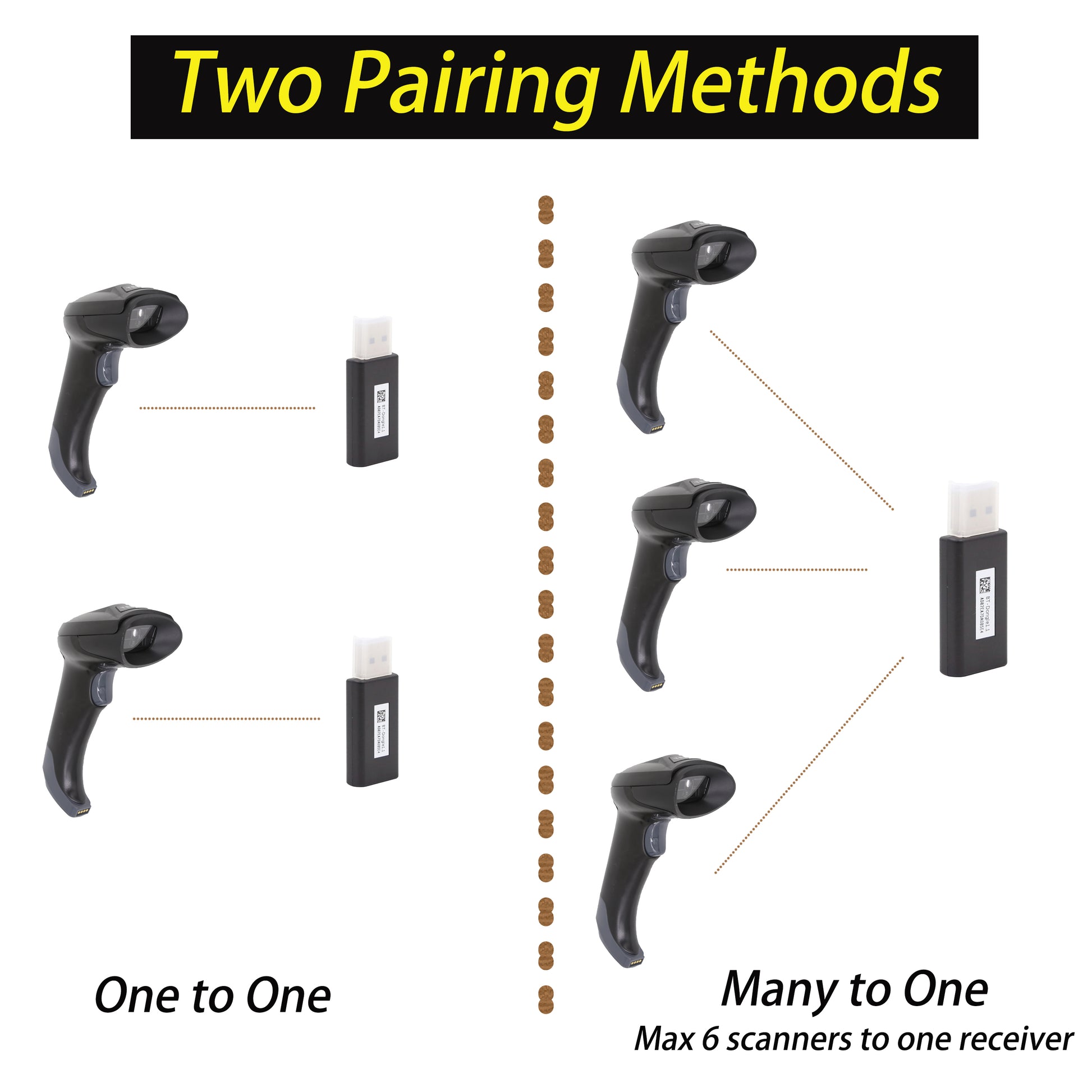

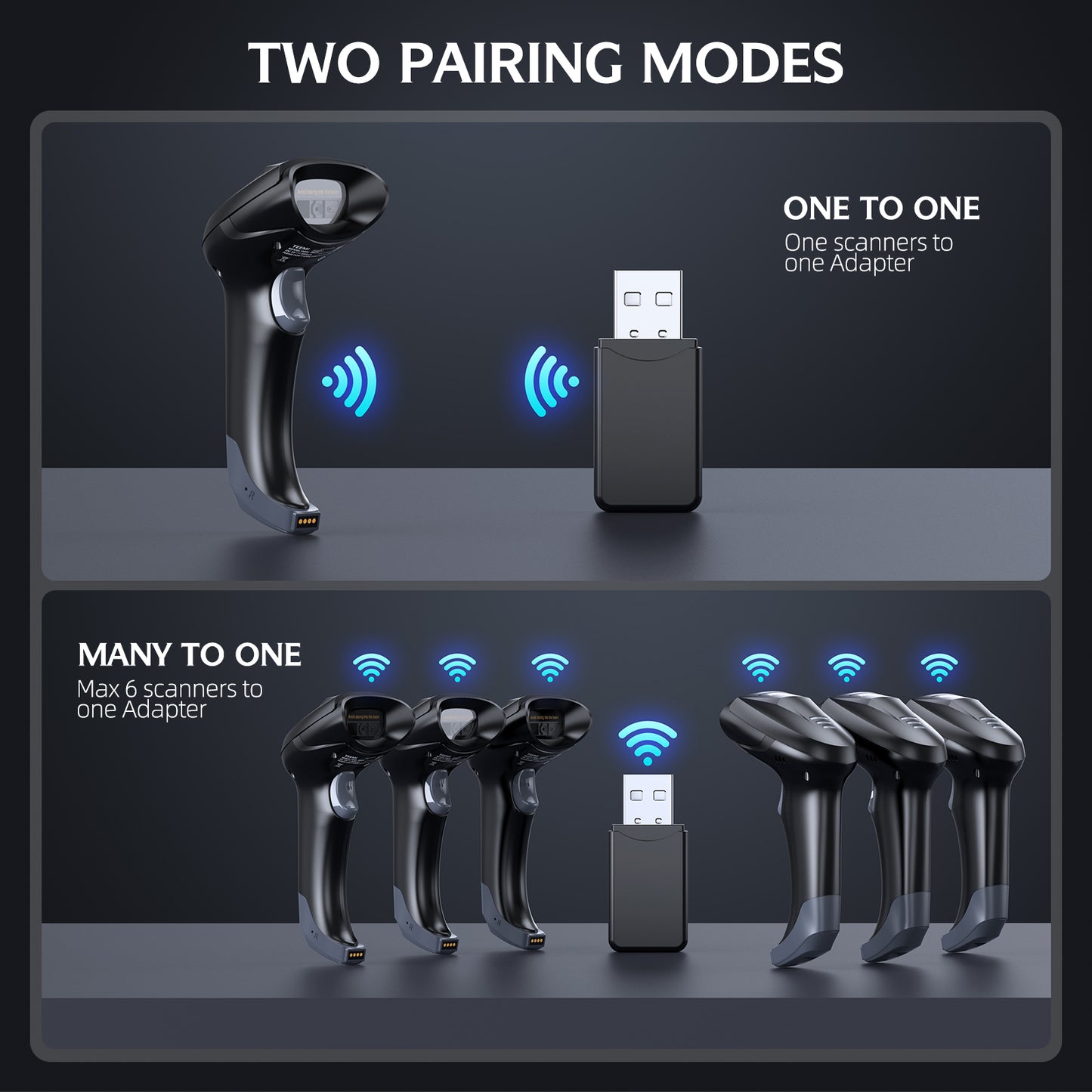

Easily pair with your smart device or the USB cradle or receiver

You can select the bluetooth profile mode accroding to your software requirement.



  • Bluetooth SPP(serial port profile):



The scanner can upload the data to your serial software under this mode.



  • Bluetooth GATT(Generic Attribute Profile)



The scanner can upload the data to your serial software under this mode. GATT Service UUID needs to be filled while in connection.



  • Bluetooth HID



The scanned barcode data will be uploaded to IOS, Android , windows or other devices in the form of bluetooth keyboard data.

Heavy durable USB cradle weighs 0.6lb

When you press the red pager button at the back of the cradle, there are audible tones and hand pulsation, therefore you can easily find your scanner.
long signal stable bluetooth 5.0 barcode scanner

With the bluetooth adapter, the signal range can be up to 250 meters maximum. The obstacles may affect the signal.

rechargeable wireless bluetooth barcode scanners large capacity

The USB cradle is not inclued in this package.



  • When the battery is low, you will hear three high beeps from the scanner.
  • Charging via the USB wall charger(not included) is faster than charging via the cradle. You can use any 5V 1A USB wall charger to charger the scanner.
  • With 2600mAh Capacity Battery, it can work 12 hours continuously after full charge. (Test the battery life with a machine, scanning rate one scan per second). If you only do hundreds scans per day, the scanner can work for half month. To charge the device, place it directly on the cradle or connect to any active USB port. The red LED will turn on during charging. The scanner can be fully charged in around 5 to 6 hours.



Charging via the USB wall charger(not included) is faster than charging v the cradle. You can use any 5V 1A USB wall charger to charger the scanner.

durable anti drop barcode scanner
works for all kinds of business retail universal barcode scanner
Download the driver here.

1.If your TEEMI 2D scanner has difficulties to scan QR code with website address, how to do?

please kindly scan the configuration code below to activate this feature.

2.How to Activate OCR function of TEEMI 2D Scanners?

Please kindly scan the configuration code below to activate the OCR function. This code only works for TEEMI 2D Scanners.




3. How to activate the IMB code for TEEMI 2D Scanners?

Please kindly scan the programming barcode below to activate the IMB code.

4. How to program the scanner auto enter after each scan?

Please scan this code to set up.

5. How to turn off the sound of the scanner?

Please scan the codes below to set up.

6. How to check the percentage of battery left in your scanner?

Please scan this code to check.
